Automotive Database: Ford C-Max

Not to be confused with Ford S-Max or Ford B-Max.

Ford C-Max
Overview
Manufacturer	Ford Europe
Production	2003–present
Body and chassis
Class	Compact MPV
Body style	5-door Hatchback MPV
Layout	Front-engine, front-wheel-drive
Powertrain
Electric range	34 km (21 mi) - Energi plug-in hybrid
Chronology
Predecessor	Ford Escape (hybrid models only)

The Ford C-Max (stylized as Ford C-MAX and often called the Ford Focus C-Max) is a compact MPV produced since 2003 for the European market by Ford Europe in Saarlouis, Germany. Ford introduced the C-Max in the United States as its first hybrid-only line of vehicles, which includes the C-Max Hybrid, released in September 2012, and the C-Max Energi plug-in hybrid, launched in October 2012. Although C-Max was initially available only in Europe, the first generation was partially available in New Zealand. With the introduction of the new large MPVs S-Max and Galaxy, the C-Max is the second smallest multi-purpose vehicle of Ford's lineup, after the new B-Max.

First generation (2003-2010)

First generation
Overview
Also called	Ford Focus
Production	2003–2010
Model years	2004–2010
Assembly	Saarlouis, Germany (Saarlouis Body & Assembly)
Body and chassis
Body style	5-door Hatchback MPV
Platform	Ford C1 platform
Related	Volkswagen Touran
Powertrain
Engine	Petrol engines: 1.6 I4 Duratec 1.8 I4 Duratec 2.0 I4 Duratec Diesel engines: 1.6 L I4 Duratorq TDCi 1.8 L I4 Duratorq TDCi 2.0 L I4 Duratorq TDCi
Transmission	4-speed automatic 5-speed manual transmission 6-speed manual transmission 6-speed automatic CVT automatic
Dimensions
Wheelbase	2,640 mm (103.9 in)
Length	4,371 mm (172.1 in)
Width	1,825 mm (71.9 in)
Height	1,588 mm (62.5 in)
Curb weight	1,372–1,527 kg (3,025–3,366 lb)

C-Max Mk I was the first product to use the Ford C1 platform, also used by the Ford Focus Mk II and the compact MPV Premacy/Mazda5. Its internal code name is C214.

It seats five passengers and has a large amount of cargo space, which can be increased by folding the rear seats flat. Some models feature diagonally sliding outer rear seats. It also shares the control blade independent rear suspension from the Focus.

Engines and transmissions

The available four-cylinder engines are the same as the Focus.

1.6 L Duratec was the basic engine for C-Max, 1.6 L Ti-VCT Duratec was also available.

1.8/2.0 L Duratec HE are the rest of available petrol engines

1.6/2.0 L Duratorq Ford/PSA made diesels were available along with Ford's 1.8 L Endura engine which is upgraded and named Duratorq.

Model/ Engine	Capacity	Cylinders / Valves	Power/rpm	Torque (Nm)/rpm
1.6 Duratec	1,596 cc	4/16	100 hp (75 kW; 101 PS) @6000	146 Nm (108 lbft) @4000
1.6 Duratec Ti-VCT	1,596 cc	4/16	115 hp (86 kW; 117 PS) @6000	155 Nm (114 lbft) @4150
1.8 Duratec HE	1,798 cc	4/16	125 hp (93 kW; 127 PS) @6000	165 Nm (122 lbft) @4000
2.0 Duratec HE	1,999 cc	4/16	145 hp (108 kW; 147 PS) @6000	185 Nm (136 lbft) @4500
1.6 Duratorq	1,560 cc	4/16	90 hp (67 kW; 91 PS) @4000	215 Nm (159 lbft) @1750
1.6 Duratorq	1,560 cc	4/16	109 hp (81 kW; 111 PS) @4000	240 Nm (180 lbft)/*260 Nm (190 lbft) @1750
1.8 Duratorq	1,753 cc	4/16	115 hp (86 kW; 117 PS) @3700	280 Nm (210 lbft) /*300 Nm (220 lbft) @1900
2.0 Duratorq	1,997 cc	4/16	136 hp (101 kW; 138 PS) @4000	320 Nm (240 lbft) /*340 Nm (250 lbft) @2000

*Overboost

Transmissions mated with engines are Ford IB5 (1.6/1.8 Duratec), Ford Durashift (2.0 Duratorq), MTX-75 (2.0 Duratec / 1.6-1.8 Duratorq) manual andFord Powershift double-clutch transmission available with 2.0 Duratorq. The 4F27E mated with the 2.0 Duratec engine. A CVT automatic was also available.

Facelift

In December 2006, the facelifted version of the C-Max was revealed at the 2006 Bologna Motor Show and went on sale in late spring 2007. The pre-facelift version of the car (2003–2007) was called the Ford Focus C-Max. The name change to C-Max is attributable to Ford's MPV strategy of creating a 'Max' branded line of MPVs, starting with the Ford S-Max, launched in 2006.

The facelift brought the car in line with Ford's 'Kinetic Design' design language, evidenced through its twin trapezoidal grilles, large wheel arches and angular headlights. However, as the car does not have a bodyshell originally designed for 'Kinetic Design,' Ford officially states that the car contains only 'elements' of the design language.

Before facelift

After facelift

Second generation (2010-present)

Second generation
Overview
Also called	Ford C-Max Hybrid and Ford C-Max Energi (North America)
Production	2010–present (Europe) 2012–present (U.S.)
Model years	2011–present (Europe) 2013–present (North America)
Assembly	Valencia, Spain (Ford Valencia) Wayne, Michigan (hybrids)
Body and chassis
Body style	5-door MPV
Platform	Ford Global C platform
Related	Ford Focus Mk III
Powertrain
Engine	1.6 L Duratec Ti-VCT I4 1.6 L EcoBoost I4 1.6 L Duratorq TDCi I4 2.0 L Duratorq TDCi I4
Transmission	5-speed manual 6-speed manual 6-speed automatic
Dimensions
Wheelbase	2,648 mm (104.3 in)
Length	4,380 mm (172.4 in)
Width	1,828 mm (72.0 in)
Height	1,626 mm (64.0 in)
Curb weight	1,374–1,550 kg (3,029–3,417 lb)
Chronology
Predecessor	Ford Escape Hybrid (North America)

Alongside the third generation Ford Focus Mk III, the second generation C-Max (C344) is built on Ford's new Global C platform. The appearance is inspired by the Iosis Max concept, shown at the 2009 Geneva Motor Show. In addition, Ford added a long wheelbase, seven-seat minivan variant of the C-Max, the Ford Grand C-Max.

The vehicle was unveiled at the 2009 Frankfurt Motor Show. Early European models include 5 seats, and 7-seat models entered the market at the end of 2010 (except Russia, where there is only the 7-seat model). At the 2011 North American International Auto Show, Ford announced a 7-seat C-MAX for the North American market. However, this model was cancelled prior to launch.

Features

The new Mk III platform is the first in its class to support Torque Vectoring Control (TVC).

The redesigned C-Max features flat folding third row seats, a hands free power lift gate, rear view camera, park assist, and panoramic sunroof. HD Radio, Sirius XM, Sync, dual-zone climate control system, and navigation system come as standard or as available options on the different trim lines.

The aerodynamics (drag coefficient, cw) of the car has been improved, being 0,30 for the 5 seater and 0,32 for the Grand C-Max.

Engines and transmissions

Like the previous C-Max, the new C-Max also comes with a range of petrol and diesel four-cylinder engines which are shared with the Focus.

1.0 L Ecoboost comes available in two states of tune, alongside the 1.6 - 100 hp and 125 hp guises. 1.6 L Duratec Ti-VCT is available in three spec, 85PS, 105 hp (78 kW) and 125PS

1.6 L EcoBoost comes with 150 hp (112 kW) or 182 hp (136 kW) variant, same as in Focus

1.6/2.0 L Duratorq TDCi Ford/PSA made diesels are upgraded, Ford's 1.8 L Endura engine is not available any more. They come in 110 hp and 140 hp for the 1.6 and 2.0 respectively.

Model/Engine	Capacity	Cylinders/Valves	Power/rpm	Torque/rpm
1.0 Ecoboost	999	3/12	100 hp (75 kW; 101 PS)
1.0 Ecoboost	999	3/12	125 hp (93 kW; 127 PS)
1.6 Duratec Ti-VCT	1,596	4/16	85 hp (63 kW; 86 PS)
1.6 Duratec Ti-VCT	1,596	4/16	105 hp (78 kW; 106 PS) @6000	150 Nm (110 lbft) @4000-4500
1.6 Duratec Ti-VCT	1,596	4/16	125 hp (93 kW; 127 PS) @6000	159 Nm (117 lbft) @4000
1.6 EcoBoost	1,596	4/16	150 hp (112 kW; 152 PS) @5700	240 Nm (180 lbft) /270 Nm (200 lbft) @1600-4000
1.6 EcoBoost	1,596	4/16	182 hp (136 kW; 185 PS) @5700	240 Nm (180 lbft) /270 Nm (200 lbft) @1600-5000
1.6 Duratorq	1,560	4/8	95 hp (71 kW; 96 PS) @3600	230 Nm (170 lbft) @1500-2000
1.6 Duratorq	1,560	4/8	115 hp (86 kW; 117 PS) @3600	270 Nm (200 lbft) /285 Nm (210 lbft) @1750-2500
2.0 Duratorq	1,997	4/16	115 hp (86 kW; 117 PS) @3750	300 Nm (220 lbft) @1500-2250
2.0 Duratorq	1,997	4/16	140 hp (104 kW; 142 PS) @3750	320 Nm (240 lbft) @1750-2750
2.0 Duratorq	1,997	4/16	163 hp (122 kW; 165 PS) @3750	340 Nm (250 lbft) @2000-3250

*Overboost

Transmissions mated with engines are Ford IB5 (1.6 Duratec Ti-VCT), B6 (1.6 EcoBoost/1.6 Duratorq), Durashift MMT6 (2.0 Duratorq) manual and Ford Powershift double-clutch transmission available with the 2.0 Duratorq engine.

Ford C-Max rear

Ford Grand C-Max rear

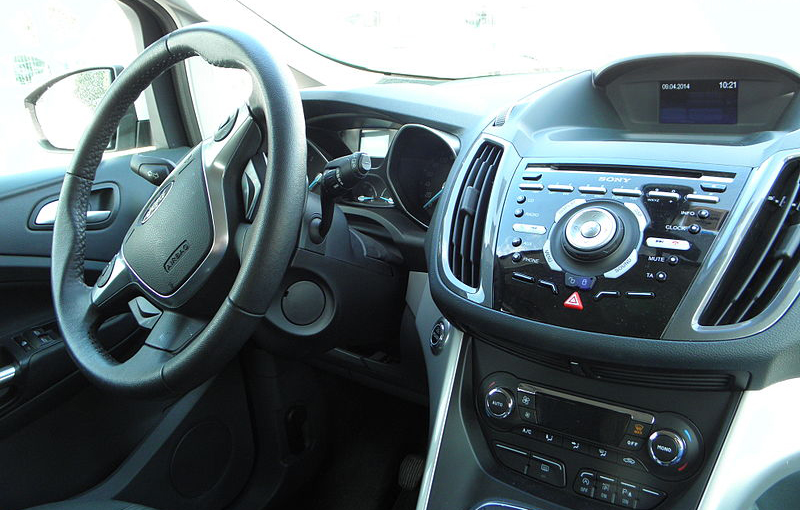

Dashboard

Hybrid and plug-in hybrid

Ford unveiled the Ford C-Max Energi plug-in hybrid and the C-Max Hybrid at the 2011 North American International Auto Show, and both are expected to be released in North America and Europe. Like the conventional C-Max, the C-Max Energi and Hybrid are five-seat only. They replace the Ford Escape Hybrid and Mercury Mariner Hybrid since Ford discontinued the Mercury brand after the 2011 model year and the Escape Hybrid after the 2012 year model. The C-Max is Ford's first hybrid-only line of vehicles. Both the plug-in and hybrid version designs are based on the European gasoline- and diesel-powered versions.

For the North American market, the C-Max Hybrid is assembled alongside the 2012 Focus and Ford Focus Electric at Ford's Wayne plant in Michigan. The C-Max Energi is also assembled in Michigan. All European versions will be built in Valencia, Spain. The C-Max Hybrid was released in the United States in September 2012 as a 2013 model year, followed by the release of the plug-in Energi version by mid October 2012.

C-Max Hybrid

Ford developed the C-Max Hybrid with the aim to become "America’s most affordable hybrid utility vehicle." The gasoline-electric hybrid model base pricing starts at US$25,995, including destination and delivery.

Specifications

Ford C-Max Hybrid on display at the entrance to Ford's Wayne Stamping & Assembly plant

The front-wheel drive hybrid has a 2-liter four-cylinder Atkinson cycle engine mated to an electric motor and a 1.4 kWh lithium-ion battery for total power output of 188 hp (140 kW). The top speed in all-electric mode of 100 km/h (62 mph) and the car's top speed in hybrid mode is 185 km/h (115 mph).

The hybrid has a maximum cargo volume of 52.6 cu ft (1,490 L) with rear seats folded flat, and 24.5 cu ft (690 L) in the cargo area behind the rear seats, providing more room than the regular Prius liftback, but less cargo room than the Prius v, which provides 67.3 cu ft (1,910 L) with the rear seats folded.

The Hybrid is offered in two trims:

The SE features eco-friendly cloth seating surfaces, Ford SYNC system with A/M-F/M stereo with single-disc CD/MP3 player, USB and auxiliary input jacks, six speakers, a multi-informational gauge cluster and color display screen, keyless entry, alloy wheels, and split-folding rear bench seat, plus a security alarm.

The SEL adds leather seating surfaces, MyFord Touch with AM/FM HD Radio stereo with single-disc CD/MP3 player and USB and auxiliary input jacks, a Sonypremium surround sound system, SIRIUS Satellite Radio, power dual front seats, keyless access, push-button start system, and other luxury features.

The Energi Plug-In Hybrid is only available in SEL trim.

EPA ratings

Ford's design aimed for the C-Max Hybrid to deliver better fuel economy than the Toyota Prius v. Ford had reduced its estimated fuel economy twice, once in 2013 and again in 2014, with the second revision placing fuel economy below the Prius V. The US Environmental Protection Agency (EPA) initially rated the hybrid model at 47 mpg_-US (5.0 L/100 km; 56 mpg_-imp)_{with the same rating for combined/city/highway cycles. These ratings allowed the C-Max Hybrid to improve the fuel economy of the Toyota Prius v by 3 mpg-US on the city cycle, by 7 mpg-US on the highway cycle and by 5 mpg-US combined. However, after criticism and lawsuits about worse-than-expected real-world fuel economy, in August 2013 Ford voluntarily lowered the EPA ratings and issued customer rebates. The revised fuel economy ratings were reduced to 45 mpg-US} (5.2 L/100 km; 54 mpg_-imp) for city driving, 43 mpg_-US (5.5 L/100 km; 52 mpg_-imp) for combined and 40 mpg_-US (5.9 L/100 km; 48 mpg_-imp) _{for highway. The revised rating for the updated 2013 C-Max Hybrid is still better than the 42 mpg-US} (5.6 L/100 km; 50 mpg_-imp) combined rating for the Toyota Prius v. A second downward revision was made during June 2014.

Ford also announced in July 2013 that it would boost the on-road fuel efficiency of its three 2013 model year hybrids through changes in the cars' vehicle control software in an effort to improve customer satisfaction. The upgrade will be offered free of charge to existing owners of these hybrids. Some of the changes include:

Increasing the maximum pure electric speed from 100 to 137 km/h (62 to 85 mph), allowing increased use of electric-only mode on the highway
Optimizing the use of Active Grille Shutters to reduce aerodynamic drag under more driving and temperature conditions including cold weather, during air conditioner use and when the engine coolant temperature is higher
Reducing the electric fan speed as a function of coolant temperature to minimize the fan’s energy consumption
Shortening engine warm-up time by up to 50% to enable electric-only driving and engine shutdown at stops sooner after cold starts
Optimizing the climate control system to minimize use of the air conditioning compressor and reduce the energy used in cold weather operation.

Sales

A total of 969 units were sold during September 2012, allowing the C-Max Hybrid to rank as the ninth-best selling hybrid car in the United States that month. During October, its first full month in the market, 3,182 units were sold, outselling the Prius v by more than 400 units, which had ranked as the fourth most sold hybrid in the previous months. Sales of the C-Max Hybrid also led Ford to achieve its best October hybrid sales month ever with a total of 4,612 sales, up 142% over October 2011. Ford reported that 25% of C-Max Hybrid sales took place in California, with Los Angeles and San Francisco as the top selling regional markets. A total of 10,935 C-Max Hybrids were sold during 2012. An additional 20,125 units have been sold during the first seven months of 2013. After Ford cut the car's EPA fuel economy rating by 4 miles (6.4 kilometers) per gallon to 43 mpg in the middle of 2012, the car experienced its three worst sales months since it debuted in the U.S.

Ford C-Max Hybrid fuel economy controversies

In December 2012, Motor Trend reported that Consumer Reports and Green Car Reports have found that the 2013 Ford C-Max Hybrid and 2013 Ford Fusion Hybrid, which share the same powertrain, do not deliver their triple 47 mpg_-US (5.0 L/100 km; 56 mpg_-imp) _{EPA ratings in real-world use. After running both vehicles through Consumer Reports real-world tests, the magazine found that C-Max hybrid achieved a combined fuel economy average of 37 mpg-US} (6.4 L/100 km; 44 mpg_-imp), with 35 mpg_-US (6.7 L/100 km; 42 mpg_-imp) and 38 mpg_-US (6.2 L/100 km; 46 mpg_-imp) for city and highway. Green Car Reports found that the C-Max delivered 37 mpg_-US (6.4 L/100 km; 44 mpg_-imp) over 50 mi (80 km) of mixed freeway and urban driving, and 40 mpg_-US (5.9 L/100 km; 48 mpg_-imp) over 240 mi (390 km) mostly at freeway speeds.

Consumer Reports concluded that the overall fuel economy for the C-Max Hybrid is off by 10 mpg, representing a deviation of about 20%. The consumer magazine said that their overall fuel economy results are usually close to the EPA's combined-mpg estimate, and among current models tested, more than 80% fall within 2 mpg margin. The largest discrepancy the magazine has previously found was 7 and 6 mpg for the Toyota Prius C and the Prius hatchback, respectively. Ford responded in a statement, saying that, "Early C-MAX Hybrid and Fusion Hybrid customers praise the vehicles and report a range of fuel economy figures, including some reports above 47 mpg. This reinforces the fact that driving styles, driving conditions, and other factors can cause mileage to vary."

A few days later the Environmental Protection Agency(EPA) said it will review claims that two new Ford hybrid vehicles are not delivering the advertised 47 mpg. Linc Wehrly, Director of Light-duty Vehicle Center Compliance Division at EPA's National Vehicle and Fuel Emissions Laboratory in Ann Arbor, Michigan commented that hybrids have far more variability in miles per gallon than a conventional vehicle. All vehicles are run through the same EPA fuel-efficiency test but the test is not administered by the EPA, instead the automakers conduct the test and EPA often conducts reviews. Most vehicles' real-world gas mileage is less than the EPA sticker number, and can often be 20% less than the sticker number depending on speed, temperature and other factors. The EPA explained that with hybrids the gap is much wider, as high as a 30% drop.

The problem lies with EPA's rules that allow automakers to group similar vehicles together and apply the same ratings and Ford did exactly that with the Fusion hybrid and C-Max hybrids.

Ford Motor Co. officials said the real-world fuel-efficiency in the C-Max Hybrid depends on driving style and other outside factors, and the company does not expect the car's fuel efficiency numbers to change, as they followed EPA's test guidelines. A Ford spokesman also said they are working closely with the EPA to determine if any changes are needed for the industry relative to hybrid vehicle testing. The carmaker explained that several factors can affect hybrid fuel economy more than regular gasoline engines, and among the differences highlighted were speed, as the difference between 75 mph and 65 mph can produce a 7 mpg difference in fuel economy; outside temperature, the difference between 40 °F and 70 °F can result in a 5 mpg difference; and vehicle break-in, the difference from 0 miles to 6,000 miles can be a 5 mpg difference.

Due to the criticism and lawsuits, in July 2013 Ford announced that it would boost the on-road fuel efficiency of the C-Max and the other two 2013 hybrids through changes in the vehicle control software in an effort to improve customer satisfaction. In August 2013, the carmaker voluntarily reduced the official EPA ratings in August 2013. Ford also announced it will issue rebates to some 32,000 C-Max owners who will be notified by mail. The payment will be US$550 to U.S. customers who purchased a C-Max and US$325 to customers who have leased the hybrid car.

After the Ford announcement, the EPA stated that it will update the test procedures used to assign fuel economy ratings to cars "to ensure that the requirements keep pace with industry trends and innovations in advanced high-efficiency vehicles." Ford used the Fusion Hybrid test to generate the fuel economy label for the C-Max Hybrid following EPA's rules. These, which date to the 1970s, specify that automakers can use the same fuel economy numbers for similar-size vehicles equipped with the same engines and transmissions. The EPA requires automakers to test the fuel economy of the biggest-selling model in a specific category. In its midsize hybrid class, Ford tested the Fusion sedan version because it was the top seller, and Ford was allowed to apply the 47 mpg-US (5.0 L/100 km; 56 mpg-imp) achieved with the Fusion Hybrid in combined, city and highway driving to the C-Max hybrid. Ford has no plans to change the fuel economy ratings on the 2013 Fusion hybrid.

C-Max Energi

Ford C-Max Energi
Overview
Also called	Ford Motor Company
Production	2012–present
Model years	2013–present
Assembly	Wayne, Michigan, United States
Body and chassis
Class	mid-size
Body style	5-door MPV
Related	Ford Fusion Energi
Powertrain
Battery	7.6 kWh lithium-ion
Electric range	32 km (20 mi)

The C-Max Energi plug-in hybrid starts at US$32,460 including the destination fee. According to its battery size, the plug-in car qualifies for a federal tax credit of US$4,007, and it is eligible for additional incentives at the state and local level, such as California's US$1,500 rebate.

Specifications

The C-Max Energi was designed with total 188 hp (140 kW) in hybrid mode delivered by a 2.0 liter Atkinson cycle four-cylinder gasoline engine plus an electric motor powered by a 7.6 kWh lithium-ion battery pack, which is smaller and lighter than nickel metal hydride batteries used in previous Ford generation hybrids. The electric drivetrain can produce a peak power of 68 kW, limited by the size of the electric motor and the power delivery capability of the battery pack, and delivers a total system power of 195 hp (150 kW) in charge-depleting mode (EV mode). The C-Max Energi is capable of reaching a top electric-only speed of 137 km/h (85 mph), exceeding the Toyota Prius Plug-in Hybrid by more than 32 km/h (20 mph). The top speed in hybrid mode is 185 km/h (115 mph).

The C-Max Energi uses a regenerative braking system capable of capturing and reusing more than 95% of the braking energy normally lost during the braking process. The charging time for the C-Max Energi is 7 hours with a 120 volt charger, and 2.5 hours with a 240 volt charger. The charge port has a LED light ring like the Ford Focus Electric and is located on the driver’s side and near the front of the car. The light ring illuminates to indicate charge status. The battery is covered by an eight years or 160,000 km (100,000 mi) component warranty.

Ford equipped the C-Max Energi with a button mounted in the center stack that enables drivers to choose an electric-only driving mode, and allows the driver to switch vehicle operation between three modes: electric-only driving without gasoline engine power ("EV Now" setting); normal hybrid mode where the powertrain blends electric and gasoline engine power as appropriate ("EV Auto" setting); or a battery-saving mode that reserves the battery power for later use ("EV Later" setting). Like the Ford Fusion Hybrid, the C-Max Energi comes with a SmartGauge with EcoGuide that provides in-vehicle customizable displays, including instantaneous fuel economy readings and coaching functions to help drivers understand and optimize their fuel efficiency. The plug-in hybrid also features ECO Cruise which saves energy by relaxing acceleration compared to standard cruise control.

EPA ratings

Ford designed the C-Max Energi plug-in hybrid to deliver better miles per gallon equivalent (MPG-e) in all-electric mode than the Toyota Prius Plug-in Hybrid. Initially, the EPA rated the Energi combined city/highway fuel economy in all-electric mode at 100 MPG-e (2.4 L/100 km). Later, due to complaints from owners not achieving the sticker fuel economy, and following a technical review, the official EPA rating in EV mode was downgraded to 88 MPG-e (2.7 L/100 km). In a similar way, initially the EPA rating in hybrid-gasoline mode was 43 mpg_-US (5.5 L/100 km; 52 mpg_-imp), but is was later downgraded to 38 mpg_-US (6.2 L/100 km; 46 mpg_-imp). EPA's rating for combined EV/hybrid operation is 51 MPG-e (4.6 L gasoline equivalent/100 km), which allows the C-Max Energi to rank in sixth place, together with the Fusion Energi, among the top ten EPA-Rated Fuel Sippers since 1984.

The C-Max Energi has an all-electric range of 32 km (20 mi), for a total EPA certified range of 890 km (550 mi), surpassing both the Chevrolet Volt (610 km (380 mi)), and the Prius Plug-in Hybrid (870 km (540 mi)).

Sales

Ford C-Max Solar Energi concept exhibited at the 2014 Geneva Motor Show

Ford released the C-Max Energi in the U.S. market by mid October 2012, and during that month 144 units were delivered to U.S. retail customers. The C-Max Energi ranked as the fifth top selling plug-in electric car in the U.S. during 2013. A total of 22,253 units have been sold in North America and Europe through June 2015, with 21,504 units delivered in the U.S. 525 units in Canada, and 224 in the Netherlands.

C-Max Solar Energi concept

Ford Motor Company announced the C-MAX Solar Energi concept, a solar PV-powered vehicle to run electrically without depending on the electric grid for fuel. The C-MAX Solar Energi Concept was unveiled at the 2014 International CES in Las Vegas. This is a collaborative project of Ford, SunPower Corp. and the Georgia Institute of Technology.

Recognition

The C-Max Energi was awarded the 2012 Green Car Vision Award by the Green Car Journal at the 2012 Washington Auto Show.
Both the Ford C-Max hybrid and the Energi plug-in hybrid were among the five finalists for the 2013 Green Car of the Year awarded by the Green Car Journal at the 2012 Los Angeles Auto Show.

Production

C-Max production takes place in Valencia, Spain. To allow for lower production costs, the production of the electric hybrid and plug-in hybrid electric versions will take place in Wayne, Michigan.

Back to Ford
