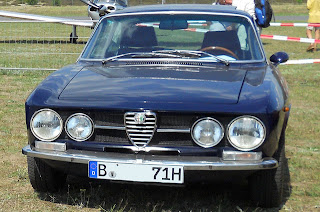

Alfa Romeo 105/115 Series Coupés

Alfa Romeo 105/115 Series Coupé
Overview
Manufacturer
Alfa Romeo
Production
1963–1977
Assembly
Arese, Milan, Italy (1963–1977)
Rosslyn plant, South Africa
Designer
Giorgetto Giugiaro at Bertone (Sprint, GT, GTV)
Carrozzeria Touring (GTC)
Ercole Spada at Zagato (Junior Zagato)
Body and chassis
Class
Sports car
Body style
2-door coupé
2-door convertible
Layout
FR layout
Related
Alfa Romeo Giulia Saloon
Powertrain
Transmission
5-speed manual
Dimensions
Wheelbase
Berlina: 2720 mm (107.1 in)
Spider: 2500 mm (98.4 in)
Length
Berlina: 4,710 mm (185 in)
Spider: 4,496 mm (177.0 in)
Width
Berlina: 1,700 mm (67 in)
Spider: 1,650 mm (65 in)
Height
Berlina: 1,430 mm (56 in)
Spider: 1,320 mm (52 in)
Curb weight
1,178–1,337 kg (2,597–2,948 lb)
Chronology
Predecessor
Alfa Romeo Giulietta Coupé
Successor
Alfa Romeo Alfetta GT, GTV & GTV6
The Alfa Romeo 105/115 series Coupés were a range of cars made by the Italian manufacturer Alfa Romeo from 1963 until 1977. They were the successors to the celebrated Giulietta Sprint coupé and used a shortened floorpan from the Giulia Berlina car.

Bodywork

The basic body shape shared by all models was designed by Giorgetto Giugiaro for Bertone. It was one of his first major projects for Bertone, and borrowed heavily from his earlier design for the Alfa Romeo 2000 Sprint/2600 Sprint. Even Jaguar later on copied the charm and elegance of the Italian design. The balance of glass and metal, the influence of the shape of the front and rear glass on the shape of the cabin, and the flat grille with incorporated headlamps were groundbreaking styling features for the era.
A limited production (1000 units) convertible was a modification from the standard car by Touring of Milan, offered as a catalogue model by Alfa Romeo called the Giulia Sprint GTC.
A small number of the GT Junior Zagato were also built with a very different, aerodynamic two-seater coupe body designed by Ercole Spada for Zagato of Milan. These too were offered by Alfa Romeo as catalogue models, as the GT 1300 Junior Zagato and later GT 1600 Junior Zagato.

Mechanical features

All models feature the four cylinder, all-light-alloy Alfa Romeo Twin Cam engine in various cubic capacities from 1290 cc to 1962 cc, all with two valves per cylinder. All versions of this engine fitted to the 105 series coupes featured twin carburettors, except for US market 1750 GTV and 2000 GTV cars which were fitted with fuel injection. Competition models featured cylinder heads with twin spark plugs. Common to all models was also a 5-speed manual transmission and disc brakes on all four wheels. The rear suspension uses a beam axle with coil springs. Air conditioning and a limited slip rear differential were optional on the later models.
1972 2000 GTV in a vintage race at Watkins Glen International

Models

Version
Years of production
Units produced
Sprint GT
from 1963 to 1966
21,542
Sprint GTC
from 1964 to 1966
1,000
Sprint GTV
from 1965 to 1968
14,240
1750 GTV
from 1968 to 1973
44,269
2000 GTV
from 1971 to 1976
37,459
GT 1300 Junior
from 1965 to 1977
91,195
GT 1600 Junior
from 1972 to 1976
14,299
The 105 series coupés featured the GT (Gran Turismo) model description, which was common to all models in one form or another.
The various models in this range can be considered in two broad categories.
On one hand were the various Gran Turismos (GT) and Gran Turismo Veloces (GTV), (veloce is Italian for "fast"). These were meant to be the most sporting cars in the Alfa Romeo range and sold very well to enthusiastic motorists around the world. The first model available was the Giulia Sprint GT (1963) which evolved into the Giulia Sprint GT Veloce (1965), the 1750 GTV (1968) and the 2000 GTV (1972–1976), with engines increasing in cubic capacity from 1570 cc (Giulia Sprint GT/GTV) through 1779 cc (1750 GTV) to 1962 cc (2000 GTV). A limited production (1000 units) convertible, the Giulia Sprint GTC, was based on the Giulia Sprint GT, modified by Touring of Milan. It was only made over two years from 1964 to 1966.
On the other hand was the GT Junior range, which featured engines with smaller cubic capacities. GT Juniors sold in great numbers to people who wanted a sporting, stylish car that handled well, but either did not require the maximum in engine power, or could not afford the taxation on larger engine capacities in some markets - most notably, Alfa Romeo's home Italian market. Junior models began with the first GT 1300 Junior in 1966. The GT 1300 Junior continued until 1976 with the 1290 cc engine and various modifications incorporating features from the evolution of the GT's and GTV's. From 1972 a GT 1600 Junior model was also available, with the 1570 cc engine.
The 1300 Junior and 1600 Junior also became available with a very different, aerodynamic two-seater coupe body designed by Ercole Spada for Zagato of Milan. These models were the GT 1300 Junior Zagato and GT 1600 Junior Zagato.
Both categories were used to derive GTA ("Allegerita", or "lightened") models, which were specifically intended for competition homologation in their respective engine size classes. The GTA's featured extensive modifications for racing, so they were priced much higher than the standard models and sold in much smaller numbers. Practically all GTA's made were used in competition, where they had a long and successful history in various classes and category. These models included the Giulia Sprint GTA, GTA 1300 Junior, and GTAm (a much evolved version of the GTA built byAutodelta).
Although not commonly thought of as a 105 Series coupe variant, the Alfa Romeo Montreal used a strengthened and slightly modified 105 series floorpan and suspension.

GT and GTV models

Giulia Sprint GT (1963–1966)

Tipo: 105.02. Motore: 00502.
Alfa Romeo Giulia Sprint GT(1963)
Giulia Sprint GT
Overview
Manufacturer
Alfa Romeo
Production
1963–1966
Body and chassis
Body style
2-door coupé
Powertrain
Engine
1.6 L DOHC I4
Dimensions
Curb weight
948 kg (2,090 lb)
The Giulia Sprint GT was the first model introduced, and was manufactured from 1963 to 1966. It featured the original form of the Bertone body with the scalina (stepped) or "step front" (the leading edge of the hood/bonnet sat 1/4 an inch above the nose of the car). It can be most easily distinguished from other models by the following features:
  • Badging: chrome script reading "Giulia Sprint GT" on bootlid, one round Alfa Romeo badge on the grille heart, Bertone badges behind the front wheelarches.
  • Flat, chrome grille featuring a plain rectangular mesh with no bars.
  • Single-piece chrome bumpers
  • Dashboard with a flat, tilted panel finished in grey crackle.
The car was fitted with the 1570 cc displacement version of the engine (78 mm bore × 82 mm stroke, 6.38 L oil sump, 7.41 L radiator). Dunlop disc brakes were fitted all around. The rear brakes featured an unusual arrangement with the slave cylinders mounted on the axle tubes, operating the calipers by a system of levers and cranks. 31,955 Sprint GTs were produced.

Giulia Sprint GTC (1964–1966)

Tipo: 105.25. Right hand drive tipo: 105.29. Motore: 00502.
Alfa Romeo Giulia Sprint GTC (1965)
Giulia Sprint GTC
Overview
Manufacturer
Alfa Romeo
Production
1964–1966
around 1000 produced
Designer
Carrozzeria Touring
Body and chassis
Body style
2-door cabriolet
Powertrain
Engine
1.6 L DOHC I4
Dimensions
Length
4,080 mm (160.6 in)
Width
1,580 mm (62.2 in)
Height
1,315 mm (51.8 in)
Curb weight
905 kg (1,995 lb)
The Giulia Sprint GTC was a Cabriolet version produced in very limited numbers making them rare today with a total production of 1000 in right and left hand drive versions. Only 99 were made for the British and South African market. The car was based on the Giulia Sprint GT, with the cabriolet modification carried out by Touring of Milan. Besides the cabriolet top, a distinguishing feature is the dashboard finished in black instead of grey crackle. The model was badged with a script reading "Giulia Sprint GTC" on the bootlid.
To restore some of the bodyshell rigidity lost by removing the fixed roof and pillars, Carrozzeria Touring added reinforcement to several areas of the bodyshell. Through the production life of the model, several modifications to the reinforcement applied were made by Touring, apparently in an effort to improve the stiffening achieved.
Carrozzeria Touring was in financial trouble when the Giulia Spring GTC went into production. The company went out of business shortly after production of this model ended.

Giulia Sprint GT Veloce (1965–1968)

Tipo: 105.36. Right hand drive tipo: 105.37. Motore: 00536.
Alfa Romeo Giulia Sprint GT Veloce Coupe (1966)
Giulia Sprint GT Veloce (GTV)
Overview
Manufacturer
Alfa Romeo
Production
1965–1968
Body and chassis
Body style
2-door coupé
Powertrain
Engine
1.6 L DOHC I4
Transmission
5-speed synchromesh
Dimensions
Length
4,089 mm (161.0 in)
Width
1,575 mm (62.0 in)
Height
1,321 mm (52.0 in)
Curb weight
1,012 kg (2,231 lb)
Chronology
Predecessor
Giulia Sprint GT
Successor
1750 GTV
The Giulia Sprint GT Veloce was very similar to the original Giulia Sprint GT. It featured minor modifications to the engine, providing just 3 bhp more power, but significantly improved torque. It can be most easily distinguished from other models by the following features:
  • Badging as per Giulia Sprint GT, with two additions: Round enamel badges on the C-pillar with a Green quadrifoglio (cloverleaf) on an ivory background, and chrome "Veloce" script on rear panel.
  • Grille with black mesh and 3 horizontal chrome bars.
  • Dashboard with tilted flat panel as on the Giulia Sprint GT but with imitation woodgrain instead of grey crackle finish (first seen on the GT 1300 Junior).
  • Front seats revised to a mild "bucket" design.
  • Grille heart has 7 bars instead of 6.
  • Stainless steel bumpers, as opposed to the chromed mild steel bumpers on the Giulia Sprint GT. The bumpers are the same shape, but made in two pieces (front) and three pieces (rear) with small covers hiding the joining rivets.
Early Giulia Sprint GT Veloces featured the same Dunlop disc brake system as the Giulia Sprint GT. Later cars replaced this with the ATE disc brakes as pioneered on the GT 1300 Junior in 1966. The ATE brakes featured an interesting and more effective handbrake system on the rear brakes, which incorporated drum brakes inside the disc castings.
A total of 14,240 Giulia Sprint GT Veloces were made before production finished.

1750 GT Veloce (1967–1971)

Tipo: 105.44. Right hand drive tipo: 105.45. Motore: 00548
U.S. tipo: 105.51. Motore: 00571.
Alfa Romeo 1750 GT Veloce (1968)
1750 GT Veloce (GTV)
Overview
Production
1967–1971
Body and chassis
Body style
2-door coupé
Powertrain
Engine
1.8 L DOHC I4
Dimensions
Wheelbase
2,350 mm (92.5 in)
Length
4,089 mm (161.0 in)
Width
1,575 mm (62.0 in)
Height
1,321 mm (52.0 in)
Curb weight
1,038 kg (2,288 lb)
The 1750 GTV appeared in 1967 along with the 1750 Berlina sedan and 1750 Spider. The same type of engine was used to power all three versions; this rationalisation was a first for Alfa Romeo.
The 1750 GTV replaced the Giulia Sprint GT Veloce and introduced many updates and modifications. Most significantly, the engine capacity was increased to 1779 cc displacement (80 mm bore × 88.5 mm stroke, 6.61l oil capacity, 9.58l radiator capacity). Peak power from the engine was increased to 122 PS (90 kW; 120 hp) at 5500 rpm. The stroke was lengthened from 82 to 88.5 mm over the 1600 engine, and a reduced rev limit from 7000 rpm to 6000 rpm. Maximum torque was increased to 186 N·m (137 lb·ft) at 3000 rpm. A higher ratio final drive was fitted (10/41 instead of 9/41) but the same gearbox ratios were retained. The result was that, on paper, the car had only slightly improved performance compared to the Giulia Sprint GT Veloce, but on the road it was much more flexible to drive and it was easier to maintain higher average speeds for fast touring. For the United States market, the 1779 cc engine was fitted with a fuel injection system made by Alfa Romeo subsidiary SPICA, to meet emission control laws that were coming into effect at the time. Fuel injection was also featured on Canadian market cars after 1971. Carburettors were retained for other markets.
The chassis was also significantly modified. Tire size went to 165/14 from 155/15 and wheel size to 5 1/2J x 15 instead of 5J x 15, giving a wider section and slightly smaller rolling diameter. The suspension geometry was also revised, and an anti-roll bar was fitted to the rear suspension. ATE disc brakes were fitted from the outset, but with bigger front discs and calipers than the ones fitted to GT 1300 Juniors and late Giulia Sprint GT Veloces. The changes resulted in significant improvements to the handling and braking, which once again made it easier for the driver to maintain high average speeds for fast touring.
The 1750 GTV also departed significantly from the earlier cars externally. New nose styling eliminated the "stepped" hood of the Giulia Sprint GT, GTC, GTA and early GT 1300 Juniors and incorporated four headlamps. For the 1971 model year, United States market 1750 GTV's also featured larger rear light clusters (there were no 1970 model year Alfas on the US market). Besides the chrome "1750" badge on the bootlid, there was also a round Alfa Romeo badge. Similar Quadrofoglio badges to those on the Giulia Sprint GT Veloce were fitted on C pillars, but the Quadrofoglio was coloured gold instead of green. The car also adopted the higher rear wheelarches first seen on the GT 1300 Junior.
The interior was also much modified over that of earlier cars. There was a new dashboard with large speedometer and tachometer instruments in twin binnacles closer to the driver's line of sight. The instruments were mounted at a more conventional angle, avoiding the reflections caused by the upward angled flat dash of earlier cars. Conversely, auxiliary instruments were moved to angled bezels in the centre console, further from the driver's line of sight than before. The new seats introduced adjustable headrests which merged with the top of the seat when fully down. The window winder levers, the door release levers and the quarterlight vent knobs were also restyled. The remote release for the boot (trunk) lid, located on the inside of the door opening on the B-post just under the door lock striker, was moved from the right hand side of the car to the left hand side. The location of this item was always independent of whether the car was left hand drive or right hand drive.
Early (Series 1) 1750 GTV's featured the same bumpers as the Giulia Sprint GT Veloce, with the front bumper modified to mount the indicator / sidelight units on the top of its corners, or under the bumper on US market cars.
The Series 2 1750 GTV of 1970 introduced other mechanical changes, including a dual circuit braking system (split front and rear, with separate servos). The brake and clutch pedals on left hand drive cars were also of an improved pendant design, instead of the earlier floor-hinged type. On right hand drive cars the floor-hinged pedals were retained, as there was no space for the pedal box behind the carburettors. Externally, the series 2 1750 GTV is identified by new, slimmer bumpers with front and rear overriders. The combined front indicator and sidelight units were now mounted to the front panel instead of the front bumper, except again on the 1971-72 US/Canadian market cars. The interior was slightly modified, with the seats retaining the same basic outline but following a simpler design.
44,269 1750 GTVs were made before their replacement came along.

2000 GT Veloce (1971–1976)

Tipo: 105.21. Right hand drive tipo: 105.22.
U.S. tipo: 11501. Motore: 01500.
Alfa Romeo 2000 GT Veloce (1973)

2000 GT Veloce (GTV)
Overview
Production
1971–1976
Body and chassis
Body style
2-door coupé
Powertrain
Engine
2.0 L DOHC I4
Dimensions
Wheelbase
2,350 mm (92.5 in)
Length
4,089 mm (161.0 in)
Width
1,575 mm (62.0 in)
Height
1,321 mm (52.0 in)
Curb weight
1,028 kg (2,266 lb)
The 2000 GTV was introduced in 1971 together with the 2000 Berlina sedan and 2000 Spider. The 2000 range was the replacement for the 1750 range. Once again the engine was rationalized throughout the range. The engine displacement was increased to 1962 cc with a change of the bore and stroke to 84 mm × 88.5 mm. Oil and radiator capacities remained unchanged. The engine produced 132 PS (97 kW; 130 hp) at 5500 rpm with the SPICA fuel injection, which, once again, was only fitted to cars destined for the United States and Canadian markets, with carburetors retained for other markets producing officially the same power.
The interior trim was also changed, with the most notable differences being the introduction of a separate instrument cluster, instead of the gauges installed in the dash panel in earlier cars.
The 2000 GTV is most easily distinguished by its different grille. From 1974 on, this became standard on the GT 1300 Junior and GT 1600 Junior as well.
Externally the 2000 GTV is most easily distinguished by the following features:
  • Grille with horizontal chrome bars, featuring protruding blocks forming the familiar Alfa heart in outline.
  • Smaller hubcaps with exposed wheel nuts.
  • Optional aluminum alloy wheels of the same size as the standard 5. 1/2J × 14 steel items, styled to the "turbina" design first seen on the alloy wheels of the Alfa Romeo Montreal. "Turbina" refers to the wheel's resemblance to a jet engine inlet.
  • The larger rear light clusters first fitted to United States market 1750 GTV's were standard for all markets on the 2000 GTV. USA market rear turn signals were red instead of yellow on non-USA models. The side marker lamps were larger and did not have a turn signal flash feature.
From 1974 on, the 105 Series coupe models were rationalized and these external features became common to post-1974 GT 1300 Junior and GT 1600 Junior models, with only few distinguishing features marking the difference between models. The last GTV model year was 1974 for the USA. See below.
37,459 2000 GTVs were made before production ended.

GT Junior models

GT 1300 Junior (1965–1977)

Tipo: 105.30. Right hand drive tipo: 105.31. Motore: 00530. Motore, 1974 on: 00530*S.

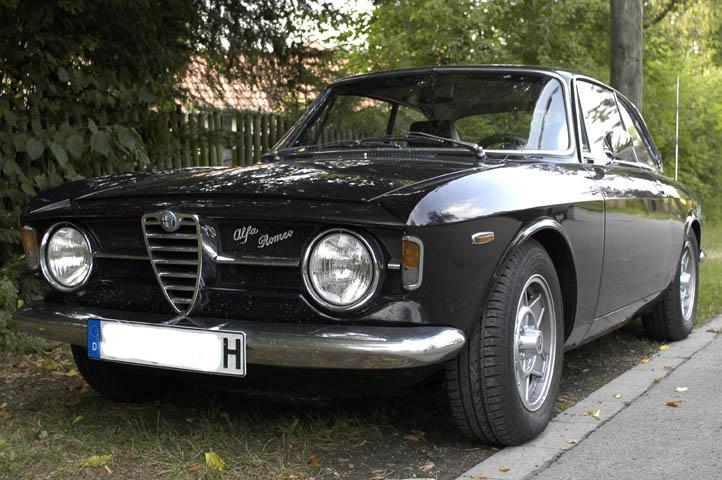

Alfa Romeo GT 1300 Junior (1969)
GT 1300 Junior
Overview
Manufacturer
Alfa Romeo
Production
1965–1974 (GT 1300 Junior)
1974–1976 (1.3 GT Junior)
Body and chassis
Body style
2-door coupé
Powertrain
Engine
1.3 L DOHC I4
Dimensions
Length
4,080 mm (160.6 in)
Width
1,580 mm (62.2 in)
Height
1,310 mm (51.6 in)
Curb weight
930 kg (2,050 lb)
The GT 1300 Junior was the entry model to the Alfa Romeo coupe range. It was introduced in 1965 as the replacement for the 101 series Giulia Sprint 1300, which was the final development of the Giulietta Sprint series.
The GT 1300 Junior was fitted with the 1300 (1290 cc) twin cam engine (74 mm bore × 75 mm stroke), as fitted to the Giulietta series cars, but revised for the 105 series with reduced port sizes and other modifications. The smaller engine was introduced in order to allow buyers to choose an Alfa Romeo coupe while avoiding the higher taxes on the models with larger engine capacity, especially in Alfa Romeo's home Italian market.
The performance was low-end compared to others in its model line, with a total of 89 bhp (66 kW; 90 PS).[13] However, the GT 1300 Junior's top speed of over 100 mph and 0-60 mph time of 12.6 seconds were very good for a fully appointed coupe with an engine of only 1300 cc displacement.
The GT 1300 Junior was in production for over a decade. Throughout this period it was updated by the factory, incorporating many of the same revisions applied to the larger-engined models.
The first GT 1300 Juniors produced were based on the Giulia Sprint GT, with a simpler interior. The major external identifying feature was the black grille with just one horizontal chrome bar. The same 9/41 final drive ratio was maintained, but with a shorter 5th gear ratio of 0.85, instead of 0.79 as on all the other 105 Series coupes.
Interior of a 1965-1968 GT 1300 Junior
Together with the Giulia 1300 Ti, the GT 1300 Junior pioneered the use of ATE disc brakes as later fitted throughout the 105 series, replacing the Dunlop discs on earlier cars. The first few GT 1300 Juniors lacked a brake servo, and had the low rear wheelarches of the Giulia Sprint GT and Giulia Sprint GTV. From 1967, a servo was fitted as standard, together with higher rear wheelarches as adopted later on the 1750 GTV.
In 1968, concurrently with the replacement of the Giulia Sprint GT Veloce by the 1750 GTV, the GT 1300 Junior was revised with many of the new parts from the 1750 GTV. This included the dashboard, the suspension and the new wheel size of 5½ × 14J instead of 4½ × 15J. This revised GT 1300 Junior, however, retained the early "step-front" body style, which, interestingly, makes it the most mechanically refined production "step-front" model. Another intriguing detail is that, just as on the 1750 GTV, the remote release for the boot (trunk) lid, located on the inside of the door opening on the B-post just under the door lock striker, was moved from the right hand side of the car to the left hand side. The location of this item was always independent of whether the car was left hand drive or right hand drive. This series of GT 1300 Junior was the only model with the step-front bodyshell to have this item mounted on the left hand side. All other step-front models - Giulia Sprint GT, Giulia Sprint GT Veloce, and early GT 1300 Junior with flat dashboard - featured this item on the right hand side.
From 1968 on, Alfa Romeo models for the US market were fitted with fuel injection systems instead of carburettors to comply with emissions control legislation. The only 105 Series models in which the classic twin-cam engine was fitted with fuel injection were the US market 1750 range, and the US market 2000 range which replaced the 1750s in mid-1972. No Alfa Romeo 1300 or 1600cc models were ever made with fuel injection.
In 1970 the Junior was revised a second time, and received the same nose treatment as the 1750 GTV, without the step but with only two headlights.
For 1972, new wheels featuring smaller hubcaps with exposed wheel nuts like those on the 2000 GTV were fitted. At the same time, the GT 1600 Junior was introduced alongside the GT 1300 Junior. The GT 1300 Junior was discontinued for the right hand drive UK market but continued to be available in other right hand drive markets.
From 1974 the GT1300 Junior and GT1600 Junior were both rationalised into a common range with the 2000 GTV and were rebadged as 1.3 GT Junior and 1.6 GT Junior. See below.

GT 1600 Junior (1972–1976)

Tipo: 115.03. Right hand drive tipo: 105.05. Motore: 00536.
Tipo, 1974 on: 115.34. Motore, 1974 on: 00526/A*S.

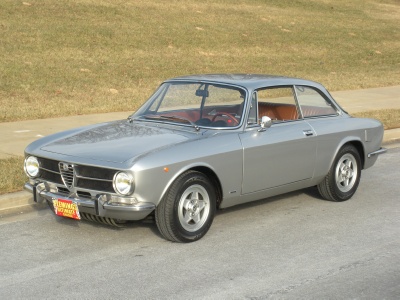

Alfa Romeo GT 1600 Junior (1973)
GT 1600 Junior
Overview
Manufacturer
Alfa Romeo
Production
1972–1975 (GT 1600 Junior)
1974–1976 (1.6 GT Junior)
Body and chassis
Body style
2-door coupé
Powertrain
Engine
1.6 L DOHC I4
The GT 1600 Junior was introduced in 1972, to plug the gap between the GT 1300 Junior and the larger-engined 2000 GTV. In the UK right-hand-drive market the GT 1300 Junior was dropped, but in many other markers the two models were available as a range. The engine was substantially the same as that of the Giulia Sprint GTV discontinued four years previously, and had the same engine type number. The final drive ratio was again 9/41 as standard on all 105 Series coupes with the 1290 cc and 1570 cc engine.
From 1974 on, the GT 1300 Junior and GT 1600 Junior were rationalised into a common range of models with the 2000 GTV and were rebadged as 1.3 GT Junior and 1.6 GT Junior, sharing most of the interior and exterior features with the larger-engined car. The only exterior differences were no bumper over-riders, lack of C-pillar green serpent badges, small rear light clusters same as pre-'74 Juniors and GT 1300 Junior or GT 1600 Junior badge on the boot. Apart from the engine size, the only mechanical differences were: smaller front brakes, as the Juniors had not adopted the larger units fitted to the 1750 GTV and 2000 GTV from 1968 on, differential ratios (Junior models 4.55:1, 2000 GTV 4.1:1) and 5th gear ratio (GT 1300 Junior 0.85:1, all other Alfa Romeo 105 models 0.79:1).
The GT Junior has a tight suspension and weighed in at just 2,050 pounds (930 kg). Because of this, the car would often go onto three wheels, lifting the inside front wheel off the road when driven enthusiastically.
Production ended in 1976 and totalled 80,623 units.

GT 1300 Junior Zagato (1969-72) and GT 1600 Junior Zagato (1972-76)

Tipo: 105.93. Motore: 00530. (1300). Tipo: 115.24. Motore: 00526*S (1600).
Alfa Romeo GT Junior Zagato
GT 1300 Junior Zagato
GT 1600 Junior Zagato
Overview
Manufacturer
Alfa Romeo
Production
1969–1976
Designer
Ercole Spada at Zagato
Body and chassis
Body style
2-door coupé
Powertrain
Engine
1.3 L DOHC I4
1.6 L DOHC I4
The GT 1300 Junior Zagato was a limited production two seater coupe with aerodynamic bodywork by Zagato (Ercole Spada) of Milan. The model evoked the earlier, race-oriented Giulietta Sprint Zagatos which featured aluminium bodywork and had a very active competition history. However, the Junior Zagato featured a steel bodyshell with an aluminium bonnet and aluminium doorskins (on the earlier 1300 JZ's). The 1300 JZ was not specifically intended for racing and did not see much use in competition. The 1300 JZ was first seen in public at the Turin Motor Show of 1969. In total 1,108 units were constructed of which 2 were destroyed during production because the bodyshells were not within specification. The 1300 was based on the floorpan, driveline and suspension of the 1300 Spider. However, the floorpan was shortened behind the rear wheels to fit the bodyshell. The last 1300 Junior Zagato was produced in 1972 although in 1974 2 more cars were built according to the records.
In 1972 the 1600 Zagato came out of which 402 units were produced. In this case the floorpan was unaltered from the 1600 Spider, so that the normal fueltank could be left in place. As a consequence, the 1600 Zagato is approximately 100 mm (3.9 in) longer than the 1300 JZ. This can be seen at the back were the sloping roofline runs further back and the backpanel is different and lower. The lower part of the rear bumper features a bulge to make room for the spare tire. The 1600 Zagato has numerous differences when compared to the 1300 Junior Zagato. If you ever see two side by side, have a look at the details. The last 1600 Zagato was produced in 1973 and the cars were sold until 1975.

GTA models

Main article: Alfa Romeo GTA

Giulia Sprint GTA (1965–1969)

Tipo: 105.32 (Alfa Romeo), 105.02/A (IGM homologation).
Right hand drive tipo: 105.34.
Motore: 00502/A or 00532/A (identical save for no. prefix.)
Alfa Romeo Giulia Sprint GTA (1965)
The GTA retained the external form of the Giulia Sprint GT, but was constructed with aluminum external panels replacing the standard steel panels. The 'A' stood for "Alleggerita", Italian for "lightened". The engine was based on that of the standard 1600 cc car with a new, twin-plug head and Weber 45DCOE carburettors. The sump, camshaft cover, timing cover and clutch housing were in lightweight magnesium alloy instead of the standard aluminium alloy. Many other measures were also taken to lighten the car, and tune it for racing. All GTA's had the lower rear wheelarches as fitted to the Giulia Sprint GT's and GTV's, and very early GT 1300 Juniors. The GTA was available from the factory as a high-performance car for the road or racing. Unmodified cars in factory trim have come to be known as "GTA Stradale" but few were sold in this form. Most customers were racers and had them further modified and tuned before delivery by Autodelta, which had become a wholly owned Alfa Romeo subsidiary running its competition department.

GTA 1300 Junior (1968–1973)

Tipo: 105.59. Motore: 00559.
Alfa Romeo GTA 1300 Junior (1972)
The GTA 1300 Junior (Tipo 105.59) was based on the early step-front GT 1300 Junior, incorporating the same modifications as the GTA. Its engine was not based on the standard 1300 cc motor but was instead based on the 1600cc GTA engine with the same bore but a shorter stroke (67.5 instead of 82 mm). Unlike the GTA, the GTA 1300 Junior featured the higher rear wheelarches as first seen on the GT 1300 Junior and later adopted for the 1750 GTV. Once again the GTA 1300 Junior was available as a standard car from Alfa Romeo, but most were modified by Autodelta for racing before delivery.

GTAm

Alfa Romeo GTAm
The 1750 GTAm (later called 2000 GTAm when the 2000 GTV was introduced) appeared in 1969. Unlike the Giulia Sprint GTA and GTA 1300 Junior, The GTAm was not built by Alfa Romeo, was never available from the factory and was never issued its own Tipo number.
The GTAm was initially built by Autodelta and was based on the US version of the 1750 GTV (Tipo 105.51) which was fitted with a SPICA mechanical fuel injection system to meet US emissions regulations. The GTAm used the extra full-throtte power which the injection system could develop for racing. Some GTAm's were converted from European-spec carburettor-induction 1750 GTV's (Tipo 105.44) and retrofitted with the injection system. The chassis are therefore numbered randomly from the ranges assigned to Tipo 105.51 and Tipo 105.44 cars (the chassis numbers do not start with 105.51 or 105.44; the chassis numbers were separate from the Tipo numbers in the 105 and 115 series Alfas). The customer had to either buy a 1750 GTV at the factory or use an existing car. The car would be shipped to Autodelta to be converted to a GTAm (which was available in various levels of tune to suit various rules and classes of competition).
Besides the cars built by Autodelta, some racing teams and private workshops ordered parts from Autodelta and other tuners and assembled the cars themselves on a new or existing bodyshell. Because of this, and of the lack of a specific chassis number series, the total number of GTAm's built is difficult to verify. According to sources, a total of some 40 were built by Autodelta and other racing workshops. A thread on chassis numbers of known GTAm's can be found on the forum of the Alfa Romeo Bulletin board (www.alfabb.com).
As in the GTA and GTA 1300 Junior, the engine had a special cylinder head with twin spark plugs per cylinder in contrast to the standard car's single plugs, but this time the head was to a new design having a much smaller included angle between the valves than in previous Alfa engines. The original 1750 engine block was used, and by inserting a monosleeve instead of four individual cylinder liners, the capacity was enlarged from the standard 1779cc to 1985cc and later to 1999cc. The GTAm (1969–1971) could produce up to 240PS (180 kW; 240 hp).
Unlike the GTA and GTA Junior, in which all the outer body panels were made of aluminium alloy instead of the standard car's steel, the GTAm retained the standard steel body modified with some aluminium and / or plastic parts. Because of an increased minimum weight in 1971 (up from 920 to 940 kg), the GTAm's had less need for aluminium and / or plastic body parts.
There have been two schools of thought about the origin of the "Am" moniker, one explaining Am as standing for "Alleggerita maggiorata" (Italian: lightened enlarged, referring to the lightened body and enlarged cylinder capacity) and the other as standing for "America". Marco Fazio of the Alfa Romeo Documentazione Storico confirmed on the Spettacolo Sportivo in September 2011 that "America" is the official type name.
