Alfa Romeo 33

This article is about the family car in 1980s. For the sports car, see Alfa Romeo 33 Stradale. For the racing car, see Alfa Romeo Tipo 33.
Alfa Romeo 33
Overview
Manufacturer
Alfa Romeo
Production
1983–1995
Assembly
Pomigliano d'Arco, Italy
Designer
Ermanno Cressoni (Centro Stile Alfa Romeo)
Pininfarina (estate)
Body and chassis
Class
Small family car
Body style
5-door hatchback
5-door station wagon
Layout
Front-engine, front-wheel-drive / four-wheel-drive
Related
Alfa Romeo Alfasud
Alfa Romeo Sprint
Powertrain
Engine
1.2 Flat-4 H4 (petrol)
1.3 Flat-4 H4 (petrol)
1.4 Flat-4 H4 (petrol)
1.5 Flat-4 H4 (petrol)
1.7 Flat-4 H4 (petrol)
1.8 L HRT 392 I3 (VM) (diesel)
Dimensions
Wheelbase
2,475 mm (97.4 in)
2,470 mm (97.2 in) (4x4)
Length
4,075 mm (160.4 in)
Width
1,615 mm (63.6 in)
Height
1,350–1,375 mm (53.1–54.1 in)
Curb weight
890–1,070 kg (1,960–2,360 lb)
Chronology
Predecessor
Alfa Romeo Alfasud
Successor
Alfa Romeo 145/146
The Alfa Romeo 33 (Type 905 and 907) is a small family car produced by the Italian automaker Alfa Romeo between 1983 and 1995. It was essentially an evolution of its predecessor, the Alfasud, which was based on the same floorplan, chassis and mechanicals albeit with some minor modifications. The Nissan-based Alfa Romeo Arna was launched shortly after, offering a similar size car but at a lower cost.
The 33 has a unique place in the Alfa Romeo history, as nearly 1 million of these cars were produced internationally. During its 11 year lifespan the 33 saw a light facelift in 1986 and a significant restyle in 1989. The 33 was discontinued in 1994 and replaced by the Alfa Romeo 145 and 146, which used the same boxer engines but built around an entirely new platform based on the Fiat Tipo.

First series (1983–1986)

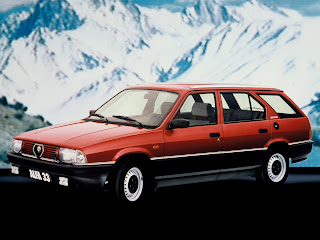

Initially known as the Alfa 33 (Type 905), the 5-door hatchback was launched in 1983 and a station wagon version (initially badged Giardinetta, later badged SportWagon) was introduced the following year at the same time as a four-wheel drive version of the hatchback. The hatchback was styled by Ermanno Cressoni at the Centro Stile Alfa Romeo, while the station wagon was designed by Pininfarina. Unlike the Alfasud, 3-door or coupe versions were not available.
It carried over the 1186cc, 1350cc and 1490cc boxer Engines from the Alfasud along with its 5-speed gearbox. Top of the range was either the luxurious Gold Cloverleaf or sporting Green Cloverleaf models.
The 33 became renowned for its nimble handling and powerful boxer engines, but also became equally well known for its unreliable electronics and tendencies to rust (a frequent complaint on Italian cars in general at the time). Another issue was its braking and increased unsprung weight — the Alfasud's inboard front disc brakes (mounted on the gearbox) had been moved to the more common outboard discs (mounted on the wheel hubs). The rear discs of the Sud's four-wheel disc arrangement had also been replaced with drums.
The car featured numerous innovations for the company, including an instrument binnacle that moved up and down with the adjustable steering wheel, and a plastic bonnet. The UK launch promoted the sleek design, and the Daily Mail noted its low drag coefficient of 0.36, and very impressive in 1983 with only bigger cars such as the Ford Sierra and Audi 100 able to better it.

Engines


Engine
Type
Displacement
Fuel system
Power
Torque
1.2
flat-4
1,186 cc (72.4 cu in)
Single carburettor
50 kW (68 PS; 67 bhp) at 6,000 rpm
92 Nm (68 lbft) at 3,200 rpm
1.3
flat-4
1,351 cc (82.4 cu in)
Single carburettor
58 kW (79 PS; 78 bhp) at 6,000 rpm
113 Nm (83 lbft) at 3,500 rpm
1.3
flat-4
1,351 cc (82.4 cu in)
Twin carburettor
63 kW (86 PS; 84 bhp) at 5,800 rpm
121 Nm (89 lbft) at 4,000 rpm
1.5
flat-4
1,490 cc (91 cu in)
62 kW (84 PS; 83 bhp) at 5,800 rpm
123 Nm (91 lbft) at 3,500 rpm
1.5
flat-4
1,490 cc (91 cu in)
Twin carburettor
70 kW (95 PS; 94 bhp) at 5,750 rpm
133 Nm (98 lbft) at 4,000 rpm
1.5
flat-4
1,490 cc (91 cu in)
Two-Twin carburettor
77 kW (105 PS; 103 bhp) at 6,000 rpm
136 Nm (100 lbft) at 4,000 rpm

Facelift (1986–1989)

A mild facelift in autumn 1986 resulted in a revised range when the 1.7 litre engine was introduced and a new interior which simplified the dashboard, and lost the innovative moveable instrument binnacle. Exterior alterations were limited to indicator lens colour changes and minor amendments to grill and bumpers. A 1.8 litre diesel engine was also introduced in some markets.

Engines


Engine
Type
Displacement
Fuel system
Power
Torque
1.3
flat-4
1,351 cc (82.4 cu in)
Single carburettor
58 kW (79 PS; 78 bhp)
1.3
flat-4
1,351 cc (82.4 cu in)
Twin carburettor
63 kW (86 PS; 84 bhp)
1.5
flat-4
1,490 cc (91 cu in)
Twin carburettor
77 kW (105 PS; 103 bhp)
1.5 i.e.
flat-4
1,490 cc (91 cu in)
EFI
72 kW (98 PS; 97 bhp)
1.7
flat-4
1,712 cc (104.5 cu in)
Twin carburettor
87 kW (118 PS; 117 bhp)
Diesel engines
1.8 TD
straight-3
1,779 cc (108.6 cu in)
KKK 14 turbocharger
54 kW (73 PS; 72 bhp)
refer

Second series (1990–1995)

The 33 was given a more extensive facelift in the end of 1989, the Series II or 'Nuova' 33 (Type 907), which went on sale in January 1990. This featured a revised interior, the introduction of fuel injection, the 1.7 litre engine upgraded to include a 137 PS (101 kW; 135 hp) 16 valve version, and a heavily restyled front and rear ends, in line with the new Alfa "family look" established by the flagship 164. Also new four wheel drive version was introduced called the Permanent 4, which was renamed to Q4 starting from 1992. Late production 33s also do not suffer from the rust problems of their ancestors, as their frames are galvanized in the manner Alfa Romeo introduced with the 164.
Alfa Romeo 33 (1993)

Engines


Engine
Type
Displacement
Fuel system
Power
Torque
1.2
flat-4
1,186 cc (72.4 cu in)
twin carburettors
57 kW (77 PS; 76 bhp) at 6,000 rpm
95 Nm (70 lbft) at 4,500 rpm
1.3
flat-4
1,351 cc (82.4 cu in)
twin Weber carburettors
63–66 kW (86–90 PS; 84–89 bhp) at 6,000 rpm
119–122 Nm (88–90 lbft) at 4,500 rpm
1.3 IE
flat-4
1,351 cc (82.4 cu in)
Marelli IAW, on some markets Bosch Jetronic before April 1992
64–66 kW (87–90 PS; 86–89 bhp) at 6,000 rpm
109 Nm (80 lbft) at 4,500 rpm
1.5
flat-4
1,490 cc (91 cu in)
twin DRLA40 carburettors
77 kW (105 PS; 103 bhp)
1.5 IE
flat-4
1,490 cc (91 cu in)
Bosch L3-1 Jetronic
77 kW (105 PS; 103 bhp) at 6,000 rpm
126 Nm (93 lbft) at 4,500 rpm
1.5 IE cat
flat-4
1,490 cc (91 cu in)
Bosch LE3 Jetronic before April 1992, Bosch Motronic MP3.1 after
70 kW (95 PS; 94 bhp) at 6,000 rpm
125 Nm (92 lbft) at 4,500 rpm
1.7 IE
flat-4
1,712 cc (104.5 cu in)
Bosch LE3 Jetronic before April 1992, Bosch Motronic MP3.1 from April 1992
81 kW (110 PS; 109 bhp) at 5,800 rpm
153 Nm (113 lbft) at 4,500 rpm
1.7 IE cat
flat-4
1,712 cc (104.5 cu in)
Bosch LE3 Jetronic before April 1992, Bosch Motronic MP3.1 from April 1992
79 kW (107 PS; 106 bhp) at 5,800 rpm
149 Nm (110 lbft) at 4,500 rpm
1.7 IE 16V
flat-4
1,712 cc (104.5 cu in)
Bosch Motronic ML4.1
98–101 kW (133–137 PS; 131–135 bhp) at 6,500 rpm
157–161 Nm (116–119 lbft) at 4,600 rpm
1.7 IE 16V cat
flat-4
1,712 cc (104.5 cu in)
Bosch Motronic ML4.1
95–97 kW (129–132 PS; 127–130 bhp) at 6,500 rpm
151–155 Nm (111–114 lbft) at 4,600 rpm
Diesel engines
1.8 TD i
straight-3
1,779 cc (108.6 cu in)
turbocharged with Intercooler (VM HRT 392)
62 kW (84 PS; 83 bhp) at 4,200 rpm
178 Nm (131 lbft) at 2,400 rpm

Z33 Free Time prototype

Zagato made a tall-bodied three-door prototype, a Compact MPV anticipating the Renault Scénic by over a decade. Called the "Z33 Free Time" this was shown at the 1984 Geneva Motor Show, but the project remained a single prototype. The "Free Time" was no longer than the regular "33" at just under 4 metres (157 in) and retained most of its driving characteristics, but with greatly increased interior space. The tiny six-seater was based on the chassis of the 33 but was visually more related to the Giulietta.

Back to Alfa Romeo
Last updated on 13 January 2014 at 18:09.
